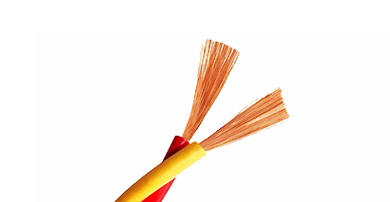

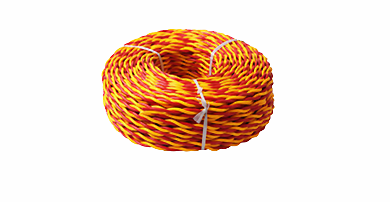

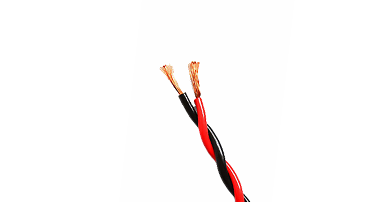

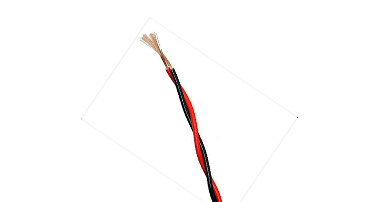

CU/PVC/PVC RVS Twin Twisted Flexible Wire Parameter
| Cross-sectional Area | No. & diameter of wire | Reference overall diameter | Reference weight | Resistance at 20℃ Max | |
| (mm2) | (N/mm) | (mm) | (kg/km) | Copper core | Tin plated copper core |
| 2 X 0.5 | 44/0.12 | 6 | 24 | 39 | 40.1 |
| 2 X 0.75 | 66/0.12 | 6.2 | 31 | 26 | 26.7 |
Description of CU/PVC/PVC RVS Twin Twisted Flexible Wire
• Rated temperature: 70oC
• Rated voltage: 300/300V
• Reference standard: JB/T8734.3
• Model: RVS
• Bare or tinned, stranded or solid copper conductor
• PVC or color-coded flame-retardant PVC insulation
Application Of CU/PVC/PVC RVS Twin Twisted Flexible Wire
For light or medium-size home appliances, instrument & meters, and power-driven lighting.
