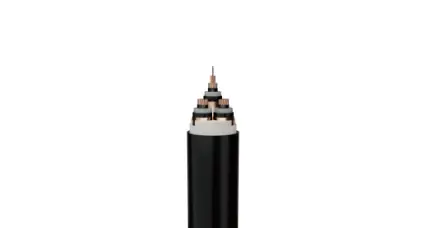

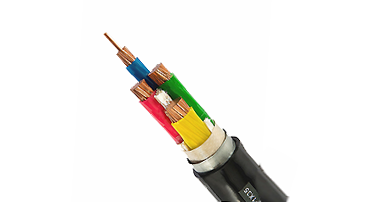

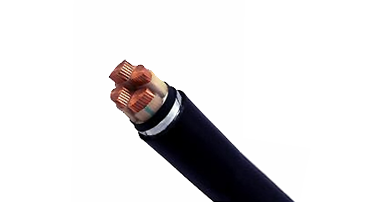

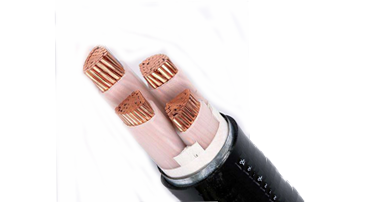

Steel Tape Armoured XLPE Insulated Power Cable (2-4 cores)

Name: Steel Tape Armoured XLPE Insulated Power Cable (2-4 cores)
Brand: GUANGDONG JINLIANYU CABLE INDUSTIAL CO.,LTD

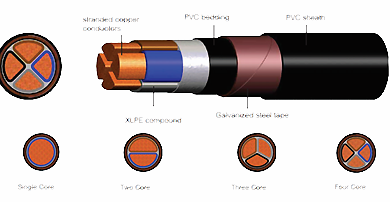

Steel tape armoured power cable are also know as STA armoured cable or armoured cable, Jenuincable supplies these amoured cables of PVC insulated as CU/PVC/STA/PVC 0/6/1KV and XLPE insulated CU/XLPE/PVC 0.6/1KV following the standard of IEC60502 and AS/NZS5000.1.

The steel tape armoured cable could be designed for some other performance as LSZH, flame retardant and fire resistance according to different usage. The steel tape armoured cable is widely buried underground and laid where it needs mechanical protection and withstand the tensile force.

Products

peter@jenuincable.com
+86-0757-88583201
Shabu Ind Lishui, Nanhai District, Foshan City, Guangdong Province, China

Get A Free Quote

Steel Tape Armoured XLPE Insulated Power Cable(2-4 cores) Parameter

Cross-sectional Area (mm²)	No.& diameter of wire (N/mm)	Average overall diameter (mm)			Reference weight (kg/km)			Conductor Resistance(Ω/km) 20ºC Max



		2	3	4	2	3	4
1.5	1/1.38	13.0	13.5	14.2	259	286	321	12.10
2.5	1/1.78	13.8	14.3	15.2	302	337	386	7.41
4.0	7/0.85	16.2	16.9	18.1	415	469	546	4.61
6.0	7/1.04	17.2	18.0	19.3	487	560	662	3.08
10	7/1.35	19.2	20.1	21.7	639	752	902	1.83
16	7/1.70	21.0	22.3	24.1	812	997	1212	1.15
25	10/1.83	18.5	20.9	23.1	817	1120	1416	0.727
35	14/1.8	21.2	24.0	26.7	1081	1493	1906	0.524
50	19/1.83	23.9	27.2	30.3	1409	1964	2527	0.387
70	27/1.83	26.2	30.6	34.3	1840	2619	3400	0.268
95	37/1.83	29.9	34.6	40.8	2428	3477	4952	0.193
120	30/2.32	32.1	38.9	44.1	2980	4688	6064	0.153
150	37/2.32	36.6	42.3	48.2	3965	5619	7281	0.124
185	37/2.52	39.7	46.0	52.8	4725	6726	8767	0.0991
240	48/2.52	45.1	52.6	60.3	6054	8650	11249	0.0754
300	61/2.52	49.1	57.9	66.2	7406	10651	13907	0.0601
400	61/2.95	54.7	65.0	73.6	9709	14068	18365	0.0470
