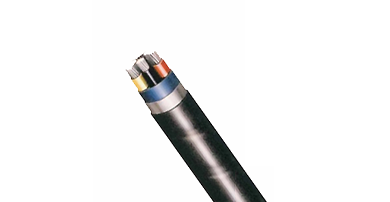

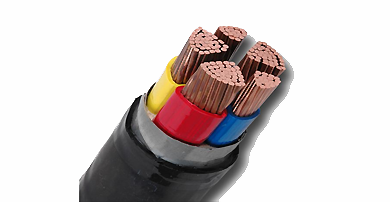

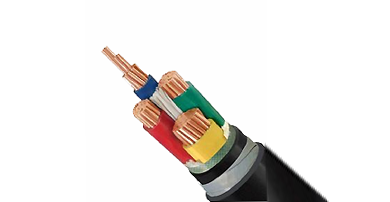

Steel Tape Armoured PVC Insulated Power Cable (2-4 cores)

Name: Steel Tape Armoured PVC Insulated Power Cable (2-4 cores)
Brand: GUANGDONG JINLIANYU CABLE INDUSTIAL CO.,LTD

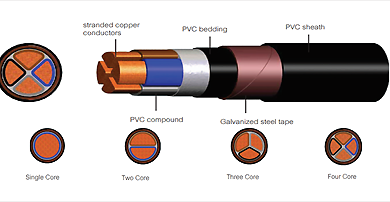

Steel tape armoured power cable are also know as STA armoured cable or armoured cable, Jenuincable supplies these amoured cables of PVC insulated as CU/PVC/STA/PVC 0/6/1KV and XLPE insulated CU/XLPE/PVC 0.6/1KV following the standard of IEC60502 and AS/NZS5000.1.

The steel tape armoured cable could be designed for some other performance as LSZH, flame retardant and fire resistance according to different usage.

The steel tape armoured cable is widely buried underground and laid where it needs mechanical protection and withstand the tensile force.

Products

peter@jenuincable.com
+86-0757-88583201
Shabu Ind Lishui, Nanhai District, Foshan City, Guangdong Province, China

Get A Free Quote

Steel Tape Armoured PVC Insulated Power Cable (2-4 cores) Parameter

Cross-sectional Area (mm²)	No.&diameter of wire (N/mm)	Average overall diameter (mm)			Reference weight (kg/km)			Conductor Resistance (Ω/km) 20ºC Max



		2	3	4	2	3	4
		2	3	4	2	3	4
1.5	1/1.38	13	13.5	14.2	265	295	333	12.10
2.5	1/1.78	13.8	14.3	15.2	309	347	400	7.41
4.0	7/0.85	16.2	16.9	18.1	428	489	573	4.61
6.0	7/1.04	17.2	18.0	19.3	502	583	692	3.08
10	7/1.35	19.2	20.1	21.7	659	782	942	1.83
16	7/1.70	21.0	22.3	24.1	836	1034	1261	1.15
25	10/1.83	19.6	22.2	24.5	890	1219	1545	0.727
35	14/1.83	21.2	24.0	26.7	1119	1548	1980	0.524
50	19/1.83	23.9	27.2	30.3	1464	2044	2635	0.387
70	27/1.83	26.2	30.6	34.3	1903	2711	3523	0.268
95	37/1.83	29.9	34.6	40.8	2510	3596	5111	0.193
120	30/2.30	32.1	38.9	44.1	3071	4820	6240	0.153
150	36/2.32	36.6	42.3	48.2	4082	5789	7507	0.124
185	45/2.30	39.7	46.0	52.8	4863	6927	9034	0.0991
240	60/2.26	45.1	52.6	60.3	6232	8910	11595	0.0754
300	61/2.52	49.1	57.9	66.2	7626	10972	14335	0.0601
400	61/2.90	54.7	65.0	73.6	9974	14454	18880	0.0470
