Copper Tape Screened Control Cable Parameter
| Cross-Sectional Area | Thickness of Insulation | Thickness of Copper Tape | Thickness of Sheath | Overall Diameter (mm) | Min resistance of insulation at 70℃ | Max.D.C resistance of at 20℃ | Approx Weight | Approx Weight | |
| mm² | mm | mm | mm | min | max | MΩ/km | MΩ/km | (kg/km) | (kg/km) |
| 4x0.75 | 0.6 | 0.05-0.1 | 1.2 | 8.1 | 9.7 | 0.012 | 24.5 | 144 | 144 |
| 4x1 | 0.6 | 0.05-0.1 | 1.2 | 8.4 | 10.2 | 0.011 | 18.1 | 153 | 153 |
| 4x1.5 | 0.7 | 0.05-0.1 | 1.2 | 9.5 | 11.4 | 0.011 | 12.1 | 190 | 190 |
| 4x2.5 | 0.8 | 0.05-0.1 | 1.5 | 10.9 | 13.1 | 0.01 | 7.41 | 276 | 276 |
| 4x4 | 0.8 | 0.05-0.1 | 1.5 | 12.5 | 15.1 | 0.0085 | 4.61 | 367 | 367 |
| 4x6 | 0.8 | 0.05-0.1 | 1.5 | 13.6 | 16.5 | 0.007 | 3.08 | 467 | 467 |
| 4x10 | 1 | 0.05-0.1 | 1.7 | 17.1 | 20.7 | 0.0065 | 1.83 | 728 | 728 |
| 7x0.75 | 0.6 | 0.05-0.1 | 1.2 | 9.3 | 11.2 | 0.012 | 24.5 | 178 | 178 |
| 7x1.0 | 0.6 | 0.05-0.1 | 1.2 | 9.7 | 11.7 | 0.011 | 18.1 | 209 | 209 |
| 7x1.5 | 0.7 | 0.05-0.1 | 1.5 | 11 | 13.3 | 0.011 | 12.1 | 239 | 239 |
| 7x2.5 | 0.8 | 0.05-0.1 | 1.5 | 13.3 | 16.1 | 0.01 | 7.41 | 398 | 398 |
| 7x4 | 0.8 | 0.05-0.1 | 1.5 | 14.6 | 17.6 | 0.0085 | 4.61 | 528 | 528 |
| 7x6 | 0.8 | 0.05-0.1 | 1.5 | 16 | 19.4 | 0.007 | 3.08 | 717 | 717 |
| 7x10 | 1 | 0.05-0.1 | 1.7 | 20.7 | 25.1 | 0.0065 | 1.83 | 1145 | 1145 |
| 10x0.75 | 0.6 | 0.05-0.1 | 1.5 | 11.3 | 13.7 | 0.012 | 24.5 | 214 | 214 |
| 10x1 | 0.6 | 0.05-0.1 | 1.5 | 12.5 | 15.1 | 0.011 | 18.1 | 300 | 300 |
| 10x1.5 | 0.7 | 0.05-0.1 | 1.5 | 14.2 | 17.2 | 0.011 | 12.1 | 367 | 367 |
| 10x2.5 | 0.8 | 0.05-0.1 | 1.7 | 16.5 | 20 | 0.01 | 7.41 | 572 | 572 |
| 10x4 | 0.8 | 0.05-0.1 | 1.7 | 18.6 | 22.5 | 0.0085 | 4.61 | 787 | 787 |
| 10x6 | 0.8 | 0.05-0.1 | 1.7 | 20.5 | 24.8 | 0.007 | 3.08 | 992 | 992 |

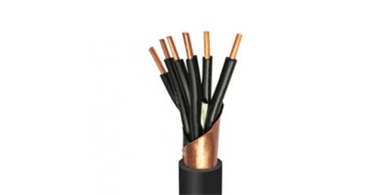

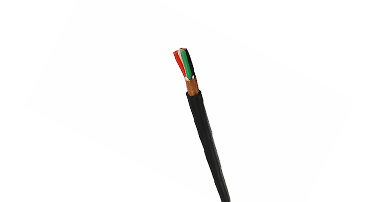

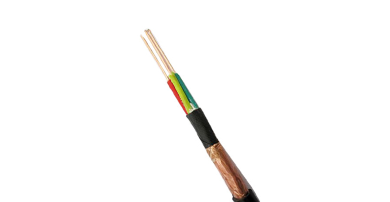

Description of Copper Tape Screened Control Cable
Conductor: Solid or Stranded Copper
Insulation: PVC/PVC(XLPE)
Screen: Copper tape Screen
Sheath: PVC
Rated voltages: 450/750V
Max. Continuous working temp of conductor:70
Upon short circuit (Max. Duration time 5s) the Max.
Temperature of conductor not higher than160°C;
Ambient temperature of installation not less than 0°C.
Standard: IEC 60227, IEC60228, AS/NZS 5000.2
China Standard: GB9330
Application Of Copper Tape Screened Control Cable
The control cable with copper tape screen features moisture-proof, corrosion-resistant and damage-proof. These copper tape screen control cables widely used as the connecting wire of instrument insulation, control equipment and power distribution facilities.
+
+
