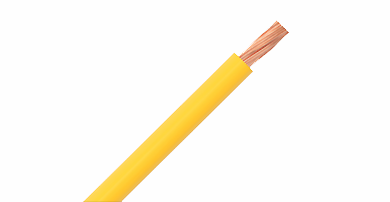

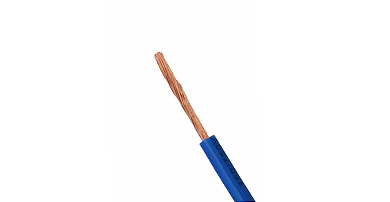

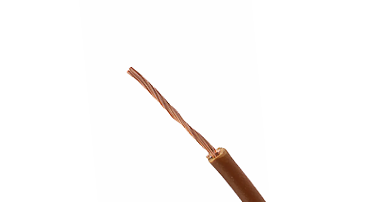

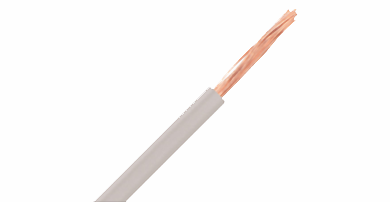

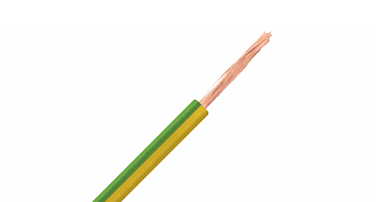

CUPVC H07V-K Single Core Flex Cable Characteristics
Normal size | conductor diameter | Average insulation thickness | External diameter | Max resistance at 20 | Approx cable weigh |
coresxmm2 | mm | mm | mm | Ω/km | kg/km |
1x1.5 | 1.5 | 0.7 | 3.4 | 13.3 | 20 |
1x2.5 | 2 | 0.8 | 4.1 | 7.89 | 31 |
1x4 | 2.5 | 0.8 | 4.8 | 4.95 | 45 |
1x6 | 3 | 0.8 | 5.3 | 3.3 | 64 |
1x10 | 4 | 1.0 | 6.8 | 1.91 | 110 |
1x16 | 5 | 1.0 | 8.1 | 1.21 | 160 |
1x25 | 6.2 | 1.2 | 10.2 | 0.78 | 250 |
1x35 | 7.4 | 1.2 | 11.7 | 0.554 | 340 |
1x50 | 8.9 | 1.4 | 13.9 | 0.386 | 480 |
1x70 | 10.5 | 1.4 | 16 | 0.272 | 670 |
1x95 | 12.2 | 1.6 | 18.2 | 0.206 | 870 |
1x120 | 13.8 | 1.6 | 20.2 | 0.161 | 1100 |
1x150 | 15.4 | 1.8 | 22.5 | 0.129 | 1370 |
1x185 | 16.9 | 2.0 | 24.9 | 0.106 | 1680 |
1x240 | 19.5 | 2.2 | 28.4 | 0.0801 | 2205 |
Description Of CUPVC H07V-K Single Core Flex Cable
Conductor: plain annealed copper class 5, flexible
Insulation: PVC, TI1 quality
Colour: H07V-K: white, yellow, green black, orange, pink, red, blue, brown, grey, orange, pink, red, light blue, violet, green/yellow.
Standard: BS EN 50525-2-31
Voltage: 450/7500v
H07V-K: black, blue, brown, grey, orange.
Application Of CUPVC H07V-K Single Core Flex Cable
H07V-K: widely used in the ground above or fixed in pipes or in similar closed systems. The cable is a good option to protected installation in lighting and control appliances for voltage up to 1000V in c.a. or up to 750 V in c.c. landward. Not allowed to be used in water.
+
+
+
