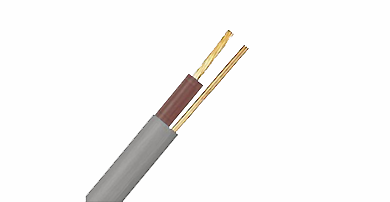

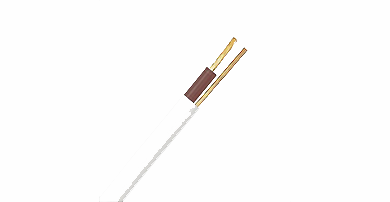

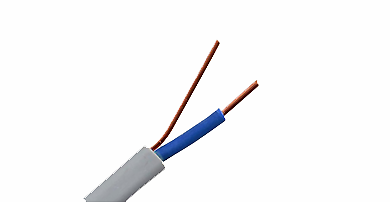

6241B LSZH Single Cores +Earth Cable Parameter
No. of Cores x Nominal Cross-Sectional Area | Nominal thickness of insulation | Nominal thickness of sheath | Nominal overall dimensions | Circuit protective conductor | Nominal Weight | Minimum insulation resistance at 90 °C | |
# x mm² | mm | mm | lower limit mm | upper limit mm | AWG | kg/km | MΩ·km |
1 × 1.0 | 0.7 | 0.9 | 4.1 × 5.2 | 5.0 × 6.3 | 17 | 45 | 0.011 |
1 × 1.5 | 0.7 | 0.9 | 4.4 × 5.4 | 5.3 × 6.6 | 17 | 55 | 0.011 |
Description Of 6241B LSZH Single Cores +Earth Cable
Rated voltage: 300/500v
Test voltage: 2000 volts
Max Flexing bending radius: 15 x Ø
Operating temperature: +5 ºC to +90 ºC
Short circuit temperature: +250 ºC
Flame retardant standard: IEC 60332.1
Smoke density acc. to EN 50268 / IEC 61034
Flame test and Flame-retardant according to EN 50265-2-1, IEC 60332.1
Application Of 6241B LSZH Single Cores +Earth Cable
6241 B LSZH cables are widely used in domestic and industrial power or lighting system. They normally installed in conduit and trunking or can be surface nounted if used as earth cable. They are good options for using in public buildings to reduce the threat to life and equipment cased by smoke and toxic fumes. They can't be installed incontrete without mechanic protection.
+
+
+
