Steel Tap Armoured Control Cable Parameter
Cross-Sectional | Thickness of | Thickness of | Thickness of | Overall Diameter | Min resistance of | Max.D.C resistance | Approx Weight | |
min | max | |||||||
4x2.5 | 0.8 | 2x0.2(0.3) | 1.5 | 13.4 | 16.1 | 0.001 | 7.98 | 450 |
4x4 | 0.8 | 2x0.2(0.3) | 1.5 | 14.4 | 17.4 | 0.0085 | 4.95 | 505 |
4x6 | 0.8 | 2x0.2(0.3) | 1.5 | 15.6 | 18.8 | 0.007 | 3.3 | 619 |
4x10 | 1 | 2x0.2(0.3) | 1.7 | 19.4 | 23.5 | 0.0065 | 1.91 | 947 |
5x2.5 | 0.8 | 2x0.2(0.3) | 1.5 | 14.3 | 17.2 | 0.001 | 7.98 | 506 |
5x4 | 0.8 | 2x0.2(0.3) | 1.5 | 15.4 | 18.6 | 0.0085 | 4.95 | 586 |
5x6 | 0.8 | 2x0.2(0.3) | 1.7 | 16.7 | 20.2 | 0.007 | 3.3 | 737 |
5x10 | 1 | 2x0.2(0.3) | 1.7 | 21 | 25.4 | 0.0065 | 1.91 | 1125 |
7x0.75 | 0.6 | 2x0.2(0.3) | 1.5 | 11.8 | 14.2 | 0.012 | 26 | 317 |
7x1.0 | 0.6 | 2x0.2(0.3) | 1.5 | 12.2 | 14.7 | 0.011 | 19.5 | 425 |
7x2.5 | 0.7 | 2x0.2(0.3) | 1.5 | 13.5 | 16.3 | 0.01 | 7.98 | 554 |
7x4 | 0.8 | 2x0.2(0.3) | 1.5 | 15.2 | 18.4 | 0.0085 | 4.95 | 701 |
7x6 | 0.8 | 2x0.2(0.3) | 1.7 | 18 | 21.7 | 0.007 | 3.30 | 900 |
7x10 | 1 | 2x0.2(0.3) | 1.7 | 22.7 | 27.4 | 0.0065 | 1.91 | 1397 |
10x0.75 | 0.6 | 2x0.2(0.3) | 1.5 | 13.8 | 16.7 | 0.012 | 26 | 449 |
10x1 | 0.6 | 2x0.2(0.3) | 1.5 | 14.4 | 17.4 | 0.011 | 19.5 | 558 |
10x1.5 | 0.7 | 2x0.2(0.3) | 1.5 | 16.1 | 19.5 | 0.011 | 13.3 | 753 |
10x2.5 | 0.8 | 2x0.2(0.3) | 1.7 | 18.8 | 22.7 | 0.01 | 7.98 | 956 |
10x4 | 0.8 | 2x0.2(0.3) | 1.7 | 20.5 | 24.8 | 0.0085 | 4.95 | 1203 |
10x6 | 0.8 | 2x0.2(0.3) | 1.7 | 22.5 | 27.1 | 0.007 | 3.3 | 1534 |

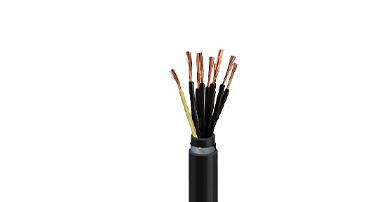

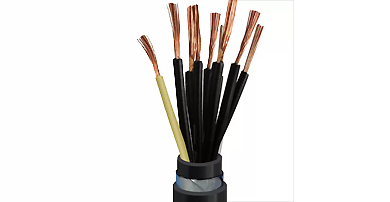

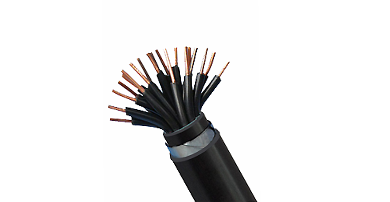

Description of Steel Tap Armoured Control Cable
Common Type: 2*0.75, 2*1, 2*6, 3*0.75, 3*6, 4*0.75, 4*4, 10*1.5, 10*2.5.
Conductor: copper class 5
Insulation: PVC
Armoured: steel tape armored
Max operating temperature of conductor:70℃
Bending radius: ≥ Outer diameter of cable 12 times
Rated voltage: 450/750V
Cores No: from 2 cores to 61cores
Standard: IEC Standard: IEC 60227, IEC60228
China national standard: GB9330
Application Of Steel Tap Armoured Control Cable
Widely in the application as power and connecting cables for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly and as in factory building with rated voltage up to and including 450/750V.
+
+
+
